PIPING STRESS ANALYSIS COURSE

---

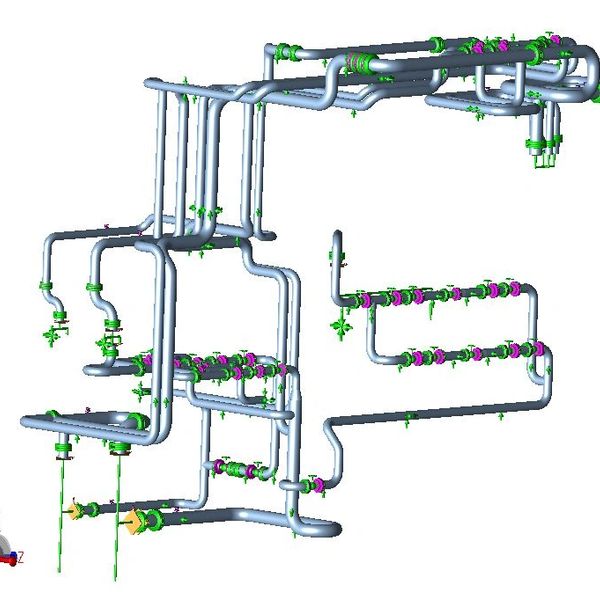

CAESAR II is the industry standard for pipe stress analysis, letting you build, assess and report on piping systems of any size or complexity in accordance with more than 35 international piping code standards and many environmental and equipment guidelines. Integration with CAD design packages lets you quickly import models, reducing risk for errors and costly iteration time between CAD and Stress Analysis divisions.

The online sessions will be provided, for the Critical Piping systems in onshore- Petrochemical, Refinery & Buried piping Offshore- FPSO & Fixed platform

ASME B31.3, B31.8 & ISO14692 API 610, API 617 & API 650

Analysis Techniques of Column & Reboilers Pump & Compressors Heat / Cool Exchangers Crude Separation / Stabilization Module Gas Compression Module Produced Water Separation Module Static / Dynamic Analysis methods

 PDMS (Plant Design Management System) as it is known in the 3D CAD industry, is a customizable, multi-user and multi-discipline, engineer controlled design software package for engineering, design and construction projects in offshore and onshore.

 The Computer-Aided Design Centre (or CADCentre as it was more commonly referred to, and later formally became) was created in Cambridge, England, UK in 1967 by the UK Ministry of Technology. Its mission was to develop computer-aided design techniques and promote their take-up by British industry. The centre carried out much pioneering CAD research, and many of its early staff members went on to become prominent in the worldwide CAD community, such as brothers Dick Newell and Martin Newell.[1]

Dick Newell oversaw the creation of the Plant Design Management System (PDMS) for 3D process plant design. He later co-founded two software companies – Cambridge Interactive Systems (CIS) which was known for its Medusa 2D/3D CAD system, and Smallworld with its eponymous Smallworld GIS (Geographical Information System). Martin Newell later went to the University of Utah where he did pioneering 3D solid modelling work; he was also one of the progenitors of PostScript.

Smart plant 3D or SP3D is one of the best plant design solution programs developed by Intergraph (Hexagon).

This is a next-generation, data-centric, rule-driven piping design software package that is specifically designed to take care of all the critical elements of plant design. This truly iterative engineering design solution is capable of designing the plant, marine, material handling facilities with ease in a highly developed 3D environment providing a competitive edge to all piping specialists.

With its high-end graphics, SP3D by Hexagon PPM provides the ease of creating, analyzing, modifying, and optimizing a plant design model. Smart plant 3D as piping design software helps to effectively manage the schedule and cost for fast-track projects.

AVEVA E3D Design is the world’s most technologically advanced 3D design solution for the process plant, marine and power industries. It enables powerful visualization, clash-free, multi-discipline 3D design, and rapidly generates accurate drawings and reports to reduce costs, timescales and commercial risks of both greenfield and brownfield capital projects.

AVEVA E3D Design offers class-leading productivity and capabilities while retaining seamless compatibility with other AVEVA Engineering and Design solutions including AVEVA Unified Engineering. Available on our secure cloud platform AVEVA™ Connect, deploy quickly in days or weeks instead of months, and compilate data to create your engineering digital twin on the cloud as you work.

PIPENET is the leader software for rapid fluid flow analysis of pipe and duct networks.

THREE SOFTWARE MODULES ensure that, no matter how extensive or complex your network, pipe flow simulation in PIPENET will be performed fast and accurately.

PIPENET has been in use across the globe for over 35 years, by companies large and small, including many multinationals, in the oil and gas, LNG, power generation, process, shipbuilding and fire protection industries. More and more of the companies that have discovered the quality and cutting edge expert technology PIPENET offers are standardizing the use of PIPENET through their own companies and stipulating PIPENET must be used by subcontractors. Who can blame them?

 PV Elite is a complete solution for vessel and heat exchanger design, analysis and evaluation. The program is easy to learn and use so it is perfect for users requiring fast start-up and confidence in their safety code calculations.

PV Elite considers the whole vessel, addressing all of the wall thickness rules and stress analysis requirements for vertical towers, horizontal vessels and heat exchangers. It also evaluates and re-rates existing vessels, including Fitness for Service analysis.
